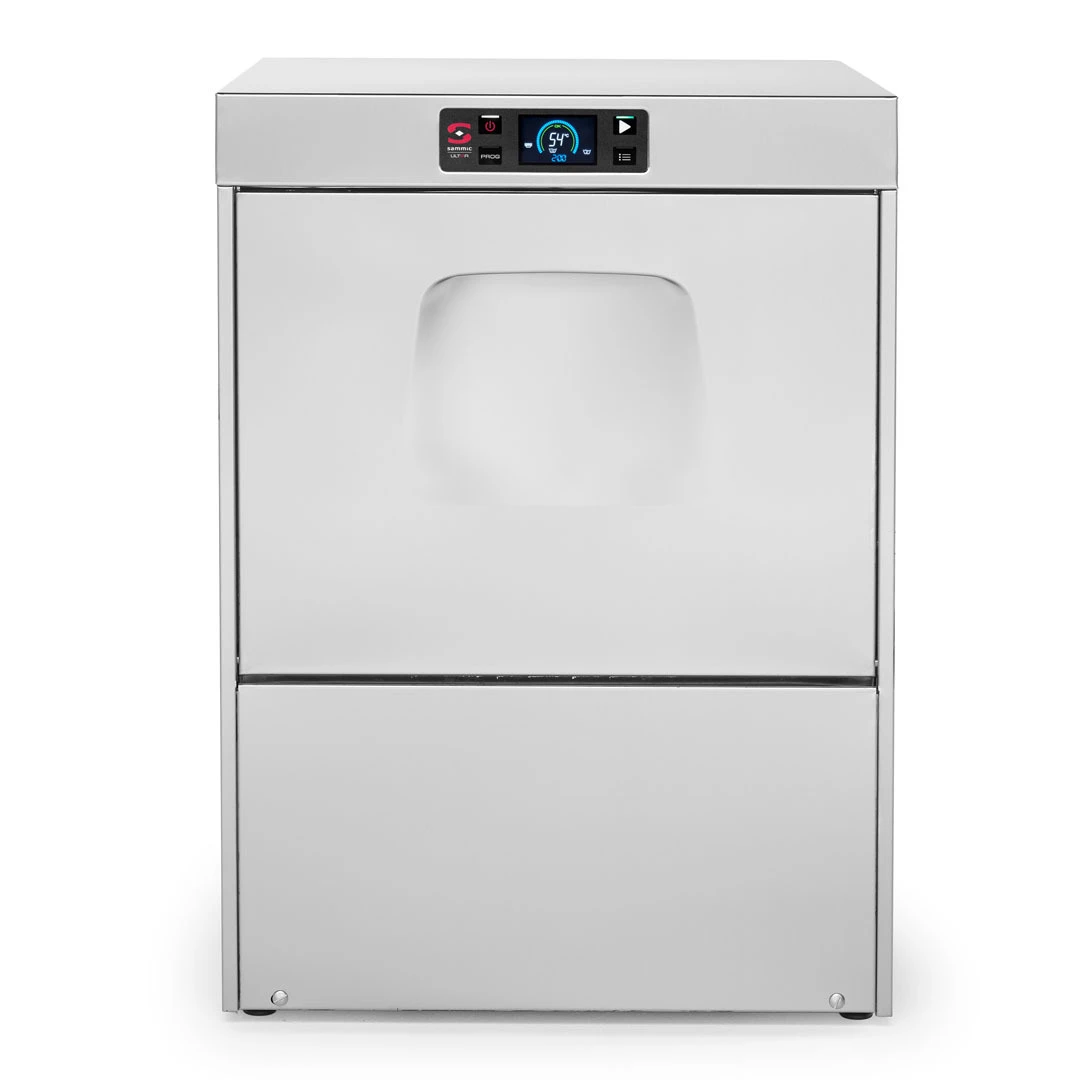

Sammic UX50SBCDD Under Bench Dishwasher

UNDERCOUNTER DISHWASHER with drain pump and detergent/rinse aid dosing equipment. Multiphase unit – 15A standard – 3phase on request

Product Features

• Sani-Control: guaranteed disinfection in compliance with standard DIN10534
• Thermal Lock function ensures rinsing will only be carried out at ideal temperature for sanitizing
• Double walled body for heating efficiency and acoustic management.
• New deep-drawn chambers and integrated rack guides with rounded corners for improved hygiene and structural robustness
• Deep drawn chambers also offer a higher wash performance and up to 30% saving in water energy and detergent compared to the previous models
• Enhanced loading height and optional extra rack guides to facilitate 2 baskets at a time – effectively doubling capacity.
• New HydrobladeTM arms with redesigned Nozzles ensure curtain of water is more uniform and powerful while generating a sharper spray panel
• The new linear design of the Hydroblade arm allows for the removal of filters without having to remove the arm first
• The stainless steel Hydroblade version included with this model Not only improves the machines efficiency but also it’s robustness to ensure delivery of constant temperature levels and washing pressure
• 3 stage filter system traps even the smallest of debris to ensure wash water is in optimum condition while protecting the tubing and wash pumps internally
• The design of the new deep-drawn tank facilitates the partial renewal of the wash water after each cycle – preventing the water in the tank from becoming saturated with dirt and maintaining constant washing efficiency throughout the day.
• New doors with ‘Easy-Grip’ handle
• Colour LCD screen that can be viewed from all angles with cycle status display and easy icon and colour coding
• Simple and intuitive selection of 6 built in ideal wash programs using icons
• Wash Plus+ function increases intensity of the cycle for greater washing efficiency
• Advanced panel allows user to adjust parameters of cycles to their specific needs
• Soft Start – progressive start of washing pump to protect fragile items

Product Specs

• Cycle Duration: 90/120/150/180 seconds
• Water Consumption: 1.9L/cycle
• Maximum Load Height: 300mm
• Wash Tank Capacity: 9L
• Wash Tank Loading: 1200W
• Wash Pump Loading: 0.33Hp/250W
• Boiler Loading: 2500W
• Tank Loading: 1200W
• Total Loading: 2750W
• Basket Dimensions: 400 x 400mm
• Country of origin : Spain
• Dead Weight (Kg) : 64
• Dimensions : 600x635x835
• Warranty : 2 years parts & labour
• Type of Warranty : On-site
• Volts : 230
• Kilowatts : 4.554
• Phase : single phase
• Plug Type : 15A
• Plug Supplied : Yes
