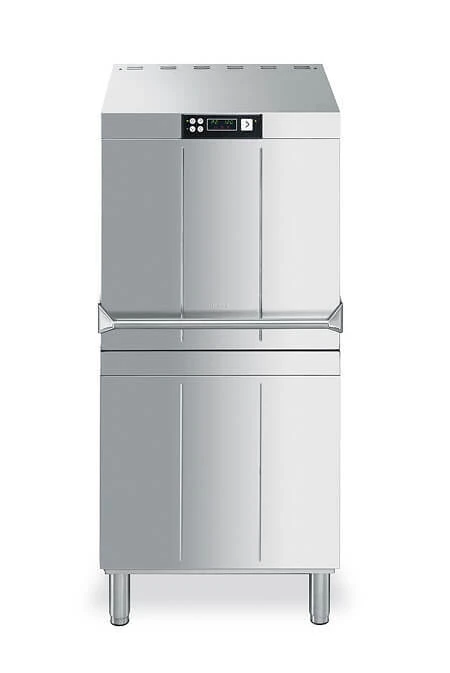

Smeg HTYA615H Special Line Professional Passthrough Dishwasher – SHR System

Customised Washing
Topline dishwashers have three standard washing programs with various options so that the right program can be selected to suit any need.

Sanitisation
According to American NSF sanitisation standards, the special UltracleanPro function (patented) activates a special sanitisation cycle subjecting the dishes to a prolonged heat treatment to remove the bacterial build-up. The plate surface remains at 70°C for at least one minute, guaranteeing the best hygiene.

Advanced Electronics
The user-friendly interface of the control panel makes Smeg dishwashers easy to use and enables the simple control of its many functions.

• Fully Insulated Passthrough Dishwasher with SHR – Steam Heat Recovery
• 9.7kw Three Phase
• Double skin, fully insulated hood and panels
• Construction in AISI 304 stainless steel
• Small capacity tank (22lt), moulded and with rounded edges
• Hood opening height: 420mm
• Capacity to wash 600x500mm baskets and 600×400 trays
• 20% higher load capacity compared to standard pass-through dishwashers
• SHR (Steam Heat Recovery) device
• HTR (High Temperature Rinse) system with atmospheric boiler and rinse pump
• 3 litres water rinse cycle
• Drain pump
• Triple stage dynamic filtration system to separate dirt particles from wash water and to control tank level
• Water connection: Cold
• Upper and lower wash and rinse arms in AISI 304 stainless steel
• Full size tank filter with removable basket, all in AISI 304 stainless steel
• Electronic control with 6 wash programs
• Shortest wash program 60 seconds
• Automatic “stand-by” to reduce energy consumption when not washing
• Automatic start on hood closure
• Soft start wash pump
• Automatic self-cleaning cycle and shut-off at the end of drain cycle
• Thermostop system to ensure correct rinse temperature
• Adjustable peristaltic pumps for detergent and rinse-aid injection
• Self-diagnostic system with error messages
• Basket: 600 x 500
• Shortest wash cycle: 60 sec
• Boiler heating element: 9.0kW
• Power: 400V 3N~/16A/9,7 kW/50 Hz
• Warranty 24 month parts and labour warranty
• Origin: Italy
• Dimensions (mm): 716w x 836d x 1520h (hood open 2040)
