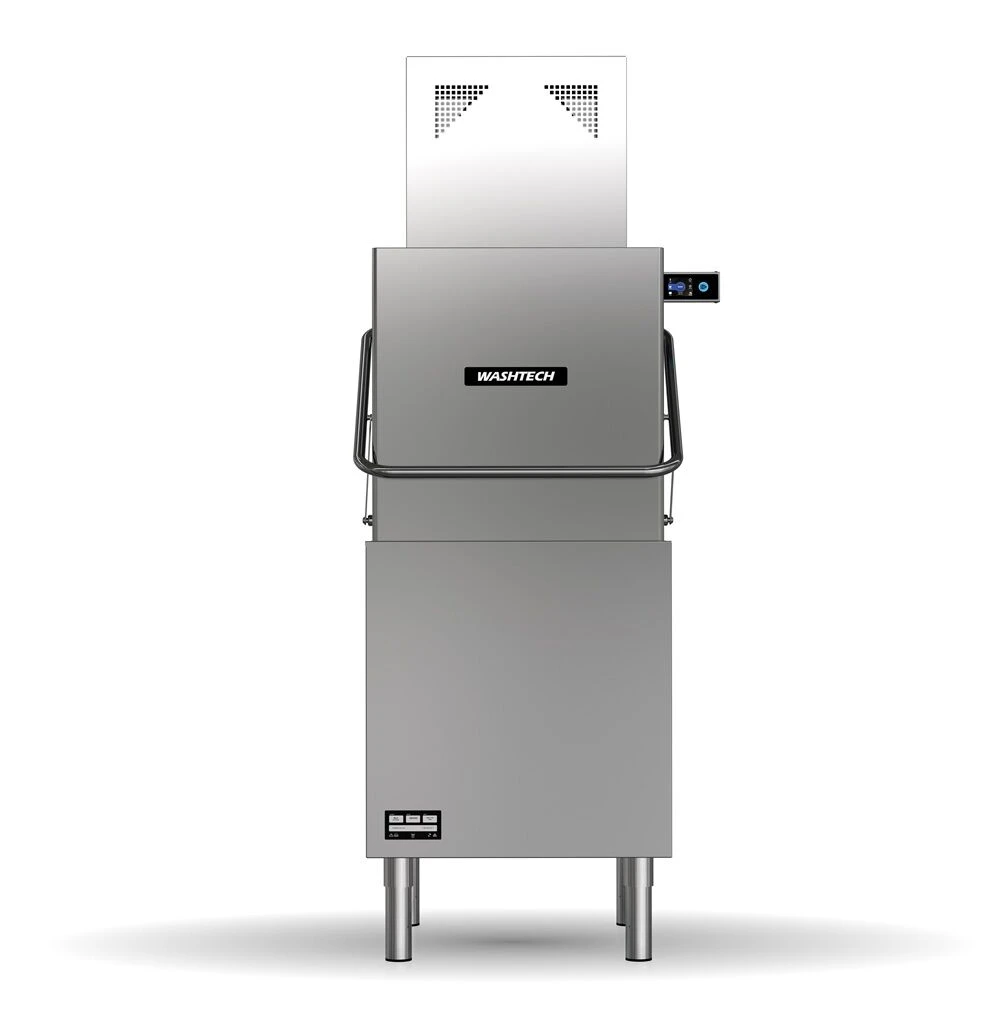

Washtech ALC – Premium Fully Insulated Passthrough Dishwasher

The Washtech Premium Range represents the most technologically advanced dishwashers in the Washtech line up. They are built to deliver the best wash results alongside the latest enhancements such as advanced electronic controllers, enhanced filtration and full thermal and acoustic insulation to provide an optimal operating environment around the machine. Our assured rinse system ensures constantly great rinsing every cycle, while the soft start functionality protects your glassware and crockery.

With a powerful wash pump and the shortest cycle of 40 seconds the Washtech AL is the perfect machine for fast paced kitchens that need a high powered machine designed to keep up with very busy operations.

Equipped with a heat condensing unit which enables the same great wash results as the AL while running on a cold water supply, This also allows for easier and lower cost water treatment options. The use of the steam to pre-heat the cold inlet water enables the ALC to reduce energy consumption, emissions and ventilation requirements, while also providing a cooler and drier operating environment.

• Autostart on door closure 40, 60 and 90 second cycles
• Washes up to 1,620 plates per hour
• Reliable results through robust stainless steel wash and rinse arms with precision stainless jets
• Durable stainless steel construction
• Moffat’s Comprehensive 5-2-1 Warranty (5 Year Cabinet Parts Only / 2 Year Wash Pump Parts & Labour / 1 Year Parts & Labour)
• Heat Recovery Condensor preheats cold water supply and significantly reduces steam emitted
• Suitable for installation without canopy in many situations – with good general dishroom ventilation
• Self cleaning jets located above the condenser flush the unit every time the machine is drained
• Low hot water consumption of 2.4 litres per cycle
• Soft start ensures great results through progressively pressurising the cycle to provide a consistent and even clean every time
• EcoPower reduces temperatures and energy consumption when machine is not being used
• Full thermal and acoustic insulation (via dual stainless steel panelling) to provide a cooler and quieter operating environment
• Enhanced filtration system that allows you to drain straight from the keypad, with no need to put your hand in the machine
• Electrical Three phase 415V 50Hz 15A/phase
• Maximum Power Consumption Three phase 10.0kW
• Heating Wash 5.0kW Rinse 9.0kW
• Dimensions W 750mm x D 750mm x H 2020mm

• Includes:
   2 x 600 70028 – 500mm dish rack
  1 x 600 70029 – 500mm cup rack
  1 x C660503 – cutlery container
  1 x C660508 – cutlery basket

  Easy installation supplied complete with:

• Water supply hose
• Dual detergent and rinse aid pumps with injector lines
• Drain pump outlet hose
• No commissioning required
