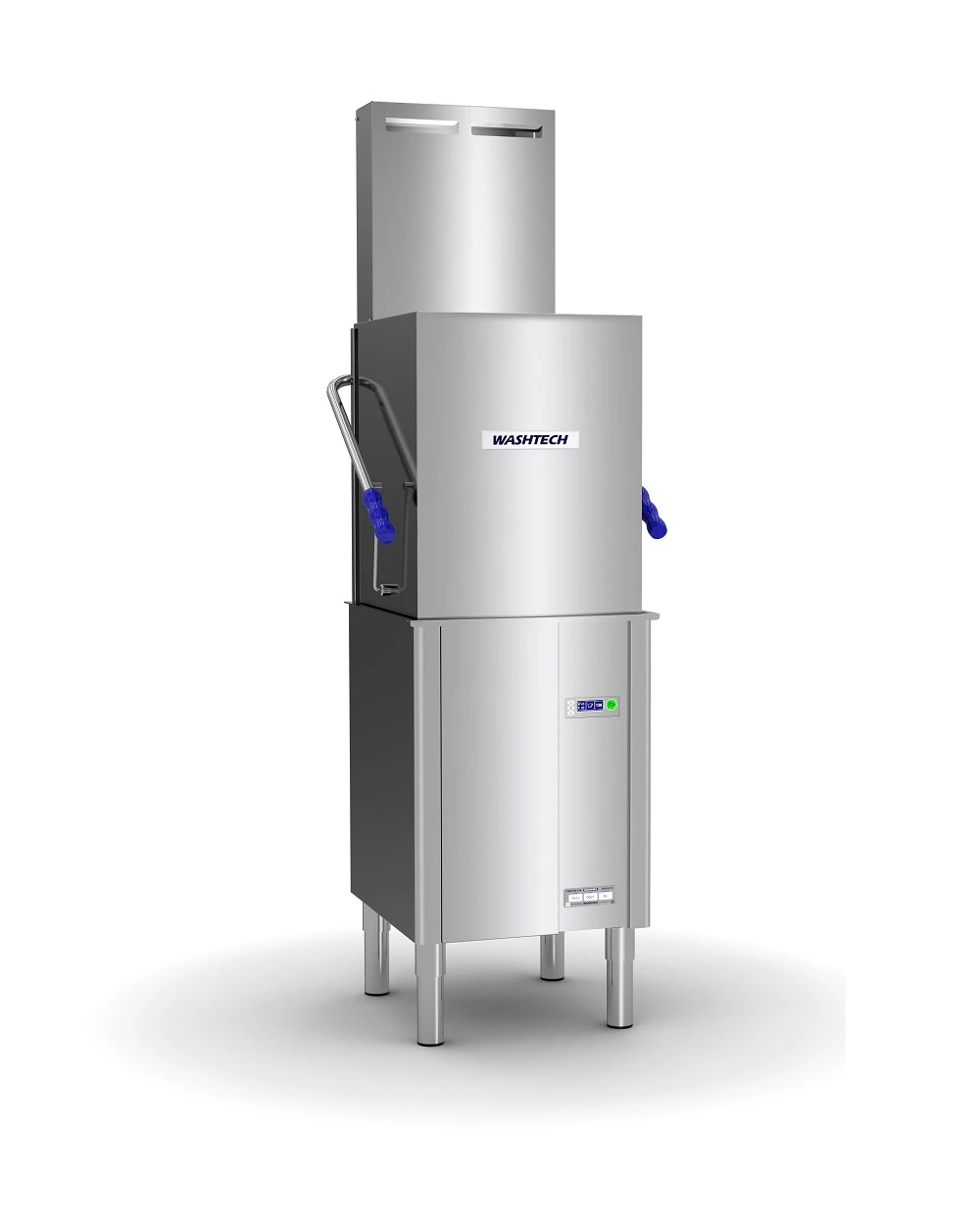

Washtech M1C – Professional Passthrough Dishwasher With Heat Condensing Unit

The Washtech M1C incorporates intuitive electronic controls providing soft wash start, eco power save system, easy to read temperatures for HACCP reporting, chemical pump adjustments and priming, cycle customisation, immediate fault diagnosis and many other options. Where space in a restaurant, café or aged care facility is at a premium, the M1C is a great solution. With the use of 450mm racks the M1C requires a bench gap just of 510mm, has a depth of only 650mm and is compatible with 600mm deep benching.

Equipped with a heat condensing unit the M1C runs on a cold water supply, which allows for easier and lower cost water treatment options. The use of the steam to pre-heat the cold inlet water enables the M1C to reduce energy consumption, emissions and ventilation requirements, while also providing a cooler and drier operating environment.

•  Autostart on door closure 1, 2 and 3 minute cycles
• Up to 960 plates per hour
• Reliable results through robust stainless steel wash and rinse arms with precision stainless jets
• Durable stainless steel construction
• Moffat’s Comprehensive 5-2-1 Warranty (5 Year Cabinet Parts Only / 2 Year Wash Pump Parts & Labour / 1 Year Parts & Labour)
• Heat Recovery Condensor preheats cold water supply and significantly reduces steam emitted
• Suitable for installation without canopy in many situations – with good general dishroom ventilation
• Self cleaning jets located above the condenser flush the unit every time the machine is drained
• Low cold water consumption of 2.4 litres per cycle
• Assured final rinse ensures the correct temperature and pressures every time through it’s rinse pump and 316 stainless break tank
• Double filtration system via scrap trays and separate wash inlet filter
• Soft start ensures great results through progressively pressurising the cycle to provide a consistent and even clean every time
• EcoPower reduces temperatures and energy consumption when machine is not being used
• Electrical Single phase 240V 50Hz 15 amp; OR, Single phase 240V 50Hz 25 amp; OR, Three phase 400V 50Hz 15 amp per phase
• 1P / 15A* = 2.5kW rinse / 2.5kW wash / 2.9kW max; OR 1P / 25A* = 5.0kW rinse / 2.5kW wash / 5.4kW max; OR 3P / 15A = 7.5kW rinse / 2.5kW wash / 8.6kW max
• Dimensions W 630mm x D 650mm x H 2025mm

Easy installation supplied complete with:

• Water supply hose
• Dual detergent and rinse aid pumps with injector lines
• Drain pump outlet hose
• Unique 510mm bench gap compatibility
• No commissioning required

Includes:
2 x 600 70080 – 450mm dish rack
1 x 600 70081 – 450mm cup rack
1 x C660503 – cutlery container
