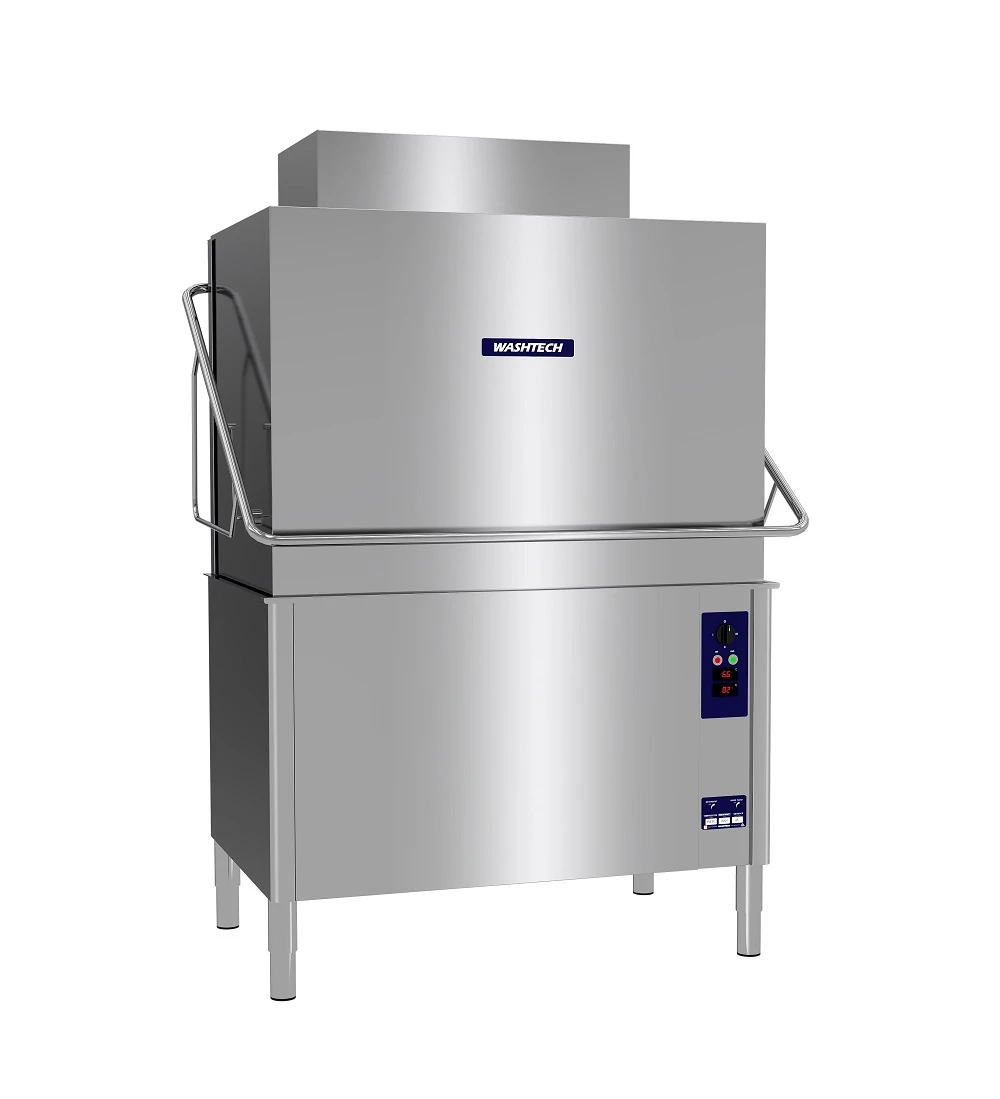

Washtech PW3C – High Performance Wide Body Passthrough Warewasher With Heat Recovery

The PW3C is a powerful, highly durable, simple-to-use and easy-to-maintain passthrough warewasher. It features Washtech Hybrid Controls which combine IP65 stainless switches, tried-and-tested switchgear, with a customisable electronic timer. Built with a large wash chamber and carefully counterbalanced passthrough door, the PW3C is ideal for washing bins, crates, bowls and other oversized items. The PW3C also features a highly efficient heat recovery unit which ensures minimal energy consumption and steam emissions, for even lighter operating costs and an improved working environment.

• Suitable for installation without an extraction canopy in many situations*
• Integrated heat recovery unit which preheats the cold water supply, significantly reducing steam emissions, energy consumption and water treatment cost
• Versatile 3, 5 and 7 minute wash cycles
• Large internal wash chamber with useable area of W 1050mm x D 640mm x H 650mm
• Low hot water consumption of 4.0 litres per cycle
• Washtech Hybrid Controls
• High powered dual wash systems
• Suitable for connection to low inlet water pressure (break tank and rinse pump fitted)
• Heavy-duty stainless steel construction and wash manifold
• Robust stainless steel wash and rinse arms with precision stainless steel jets
• Double heavy duty stainless steel filtration system including dual scrap trays and separate wash inlet filter
• Wash chamber easily accessible via counter-sprung hood
• Easy loading with inline bench work
• Watermark approved backflow prevention
• Comprehensive 5-2-1 Warranty (5 Year Cabinet Parts Only / 2 Year Wash Pump Parts & Labour / 1 Year Parts & Labour)
• Electrical: Three phase 415V 50Hz 30A, 19.5kw or 415v, 3 Phase+N+E, 50Hz, 20amp, 12kw
• Dimensions W 1330mm x D 920mm x H 2015mm

Easy Installation supplied with:

• Water supply hose
• Detergent and rinse aid pumps with injector lines
• No commissioning required

Includes:

1 x 500mm dish rack (600 70028)
1 x 500mm cup rack (600 70029)
1 x cutlery basket (C660508)
1 x 435mm cup cover (K0452)
